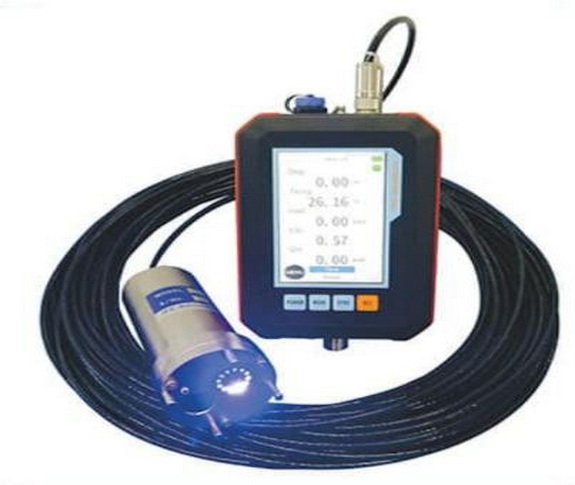

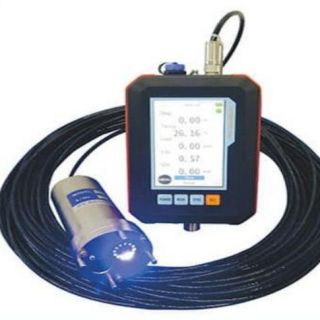

Harmful Plankton Detector
Product Number：JFE HAI sensor
● Quick assessment on Harmful Algal Bloom occurrence risk
● Compact, robust and portable
● Continuous vertical data sampling at 10 Hz
● Harmful Algal Indication sensor
● Easy deployment and real time monitoring
● Compact, robust and portable
● Continuous vertical data sampling at 10 Hz
● Harmful Algal Indication sensor
● Easy deployment and real time monitoring
The HAI sensor (Harmful Algal Indication sensor) is designed to identify two phytoplankton species that are well-known to cause harmful blooms: Karenia mikimotoi and Chattonella antiqua. The instrument takes advantage of the Eluorescence spectral Shift Index (FSI)* of these two species that is relatively high when compared to other species.
*Eluorescence spectral Shift Index (FSl) is the ration of fluorescence intensity at 690 nm to that at 670 nm in wavelength.
*Eluorescence spectral Shift Index (FSl) is the ration of fluorescence intensity at 690 nm to that at 670 nm in wavelength.
| Parameter | Chlorophyll | Temperature | FSI | Depth |
| Range | 0 to 400 ppb | -3 to 45oC | - | 0 to 50 dbar |
| Accuracy | ±1% FS(0 to 200 ppb)(1) | ±0.02oC(3 to 31oC) | ±0.05(0 to 200ppb)(2) | ±0.3% FS(Repeatability) ±0.1% FS(Non-linearity) |
(2) Repeatability using Fluorescein Sodium Salt (Uranine)
